Product Details:
Payment & Shipping Terms:
|
| Applications: | Industrial, Home | Product Name: | HT Distribution Box |
|---|---|---|---|
| IP Level: | IP 65 | Frequency: | 50/60Hz |
| Woking Environment: | -20℃-55℃ | Installation: | Surface Mounted |
| Function: | Waterproof Dustproof Anti-corrosion | Color: | Grey |
| Electric Ways: | 5 Ways 8 Ways 12 Ways 15 Ways 20 Ways | ||
| Highlight: | 12Ways Waterproof Junction Box,IP65 Waterproof Junction Box,12 Way Waterproof Junction Box |
||

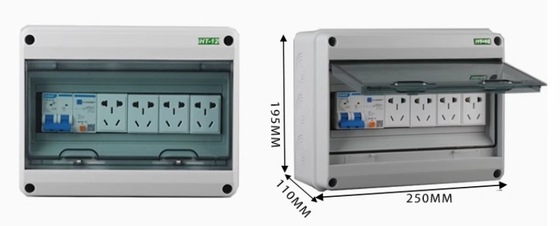

HT-12 12Ways IP65 Distribution Box Outdoor Waterproof Junction Box 12 Way Open Circuit Breaker
These waterproof switch box, 5P/8P/12P/15P/18P/24P, waterproof, dustproof and corrosion-resistant, indoor and outdoor wall mounted, user-friendly switch design, ergonomic design, more convenient for you to use, There are guide rails inside, which are easy to install the circuit breaker, stable and reliable, and there are also waterproof sealing rings, which can prevent water immersion better and more effectively, and are more reliable to use. Transparent visual window, buckle design, press to open. Application areas: The products can be widely used in various indoor and outdoor places such as industry/agriculture/chemical industry/airport/dock/ship/power plant/construction/railway/water conservancy project
Parameter:
Body material: ABS Transparent door: PC Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc. Certificates: CE, ROHS Protection grade: IP65 Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on. Installation: 1,Inside: There are din rail inside for din-rail type circuit breakers, earth bar and natural bar for cable connection. 2,Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base. Outlet hole: The plastic plate in the hole can be knocked off for cables.
ng-lasting durability.
| Model | Outside Dimenstion (mm) |
Gross/ Weight |
Net/ Weight |
Qty/ Carton |
Carton Dimenstion | ||
| L | W | H | |||||
| 5 WAYS | 115 | 150 | 90 | 13 | 11.9 | 40 | 49×33×48 |
| 8 WAYS | 197 | 150 | 90 | 14.2 | 13.2 | 30 | 48×41×48 |

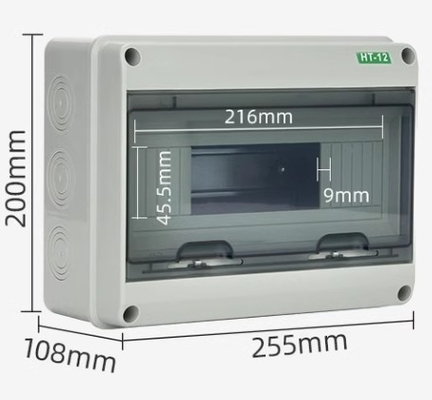

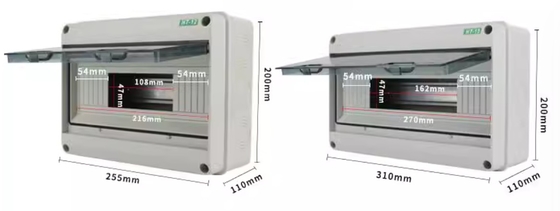

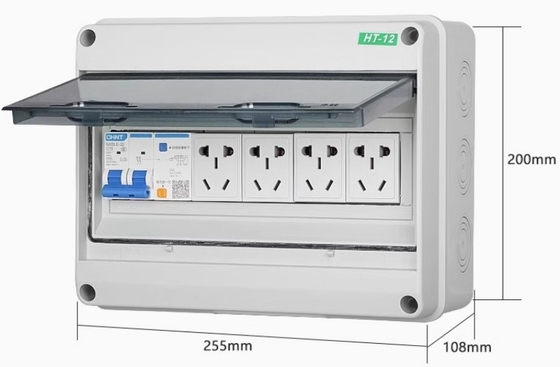

| 12 WAYS | 250 | 193 | 105 | 16.3 | 15.3 | 20 | 52×40×57 |
| 15 WAYS | 305 | 195 | 105 | 18.5 | 17.5 | 20 | 63×40×57 |
| 18 WAYs | 360 | 198 | 105 | 20.4 | 19.4 | 20 | 74×40×57 |
| 24 WAYS | 270 | 350 | 105 | 14.6 | 13.6 | 10 | 56×36×56 |
2. All the goods will be packed in export carton or wooden case carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .
3. The package will be shipped by sea or by air, or by TNT, DHL, FedEx, UPS, EMS or your forwarder . Please inform us directly which method is your preferred way .
