| Applications: | Industrial, Home | Product Name: | HT Distribution Box |
|---|---|---|---|
| IP Level: | IP 65 | Frequency: | 50/60Hz |
| Woking Environment: | -20℃-55℃ | Installation: | Surface Mounted |
| Function: | Waterproof Dustproof Anti-corrosion | Color: | Grey |
| Electric Ways: | 5 Ways 8 Ways 12 Ways 13 Ways 20 Ways | ||
| Highlight: | 8Ways Outdoor Waterproof Switch Box,8Ways Plastic Waterproof Switch Box,8Ways Waterproof Switch Box |
||

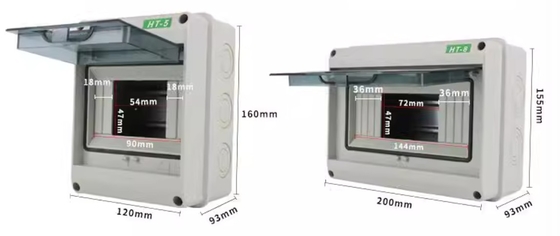

HT-5 5Ways ABS Plastic Electrical Box with circuit Breaker IP65 Power Waterproof Distribution Box
The HT Series Outdoor Waterproof box are designed to provide superior protection for electrical and electronic components in harsh outdoor environments. These enclosures are ideal for safeguarding sensitive equipment from water, dust, and other environmental factors, ensuring reliable performance and longevity
Parameter:
Body material: ABS Transparent door: PC Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc. Certificates: CE, ROHS Protection grade: IP65 Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on. Installation: 1,Inside: There are din rail inside for din-rail type circuit breakers, earth bar and natural bar for cable connection. 2,Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base. Outlet hole: The plastic plate in the hole can be knocked off for cables.
ng-lasting durability.
| Model | Outside Dimenstion (mm) |
Gross/ Weight |
Net/ Weight |
Qty/ Carton |
Carton Dimenstion | ||
| L | W | H | |||||
| 5 WAYS | 115 | 150 | 90 | 13 | 11.9 | 40 | 49×33×48 |
| 8 WAYS | 197 | 150 | 90 | 14.2 | 13.2 | 30 | 48×41×48 |
| 12 WAYS | 250 | 193 | 105 | 16.3 | 15.3 | 20 | 52×40×57 |
| 15 WAYS | 305 | 195 | 105 | 18.5 | 17.5 | 20 | 63×40×57 |
| 18 WAYs | 360 | 198 | 105 | 20.4 | 19.4 | 20 | 74×40×57 |
| 24 WAYS | 270 | 350 | 105 | 14.6 | 13.6 | 10 | 56×36×56 |
2. All the goods will be packed in export carton or wooden case carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .
3. The package will be shipped by sea or by air, or by TNT, DHL, FedEx, UPS, EMS or your forwarder . Please inform us directly which method is your preferred way .
